High-Speed Precision Marking for Industrial Production
Product Overview

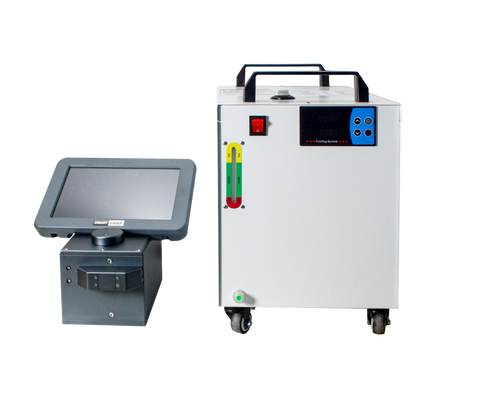

The K9-5W Smart UV Laser Marking Machine delivers 12,000 mm/s marking speed with 355nm UV laser technology. Designed for continuous industrial coding on plastic pipes, films, caps, and packaging materials.
Core Specifications
| Specification |
Value |
| Laser Power |
5W |
| Wavelength |
355nm |
| Max Marking Speed |
12,000 mm/s |
| Production Line Speed |
0-300 m/min |
| Marking Area |
70mm × 70mm (standard) |
| Operating Temperature |
5-40°C |
| Power Consumption |
≤750W |
| Machine Weight |
23kg |
| Protection Rating |
IP54 |
Key Features
• Dual-mode marking: Dot matrix + vector graphics • Multi-language support: 14 languages including English, Spanish, German, Chinese • Barcode support: Code128, QR Code, Data Matrix, PDF417, EAN13, and more • File formats: DXF, PLT • Cooling system: Water-cooled for stable operation • Positioning: UV light preview with dot-line focus
Applications
| Industry |
Materials |
Marking Content |
| Food & Beverage |
Plastic films, caps |
Expiration dates, batch codes |
| Pharmaceutical |
PVC, PE packaging |
Serial numbers, anti-counterfeiting |
| Electronics |
Components |
QR codes, logos |
| Cosmetics |
Plastic containers |
Production dates, barcodes |
| Building Materials |
PPR/PVC pipes |
Manufacturer IDs, standards |
Technical Data
| Component |
Specification |
| Laser Type |
Nanosecond UV generator |
| Control System |
P9 marking system, 10" touchscreen |
| Operating System |
Linux-based |
| Lens |
Quartz high-transmission F-Theta |
| Galvo Mirror |
12.3mm standard |
| Power Supply |
110V-220V / 50-60Hz |
| Dimensions (Control + Chiller) |
460 × 280 × 380mm |
| Optical Unit Dimensions |
259 × 140 × 141mm |
Package Contents
• UV laser marking unit (optical path) • Control box with 10" touchscreen • Water chiller system • Standard F-Theta lens (70×70mm) • Power and communication cables • User manual and software
Frequently Asked Questions
Q: What materials can the K9-5W mark? A: The machine works on PPR, PVC, PE plastics, films, caps, and most polymer materials used in packaging and pipes.
Q: How fast is the actual production speed? A: Marking speed reaches 12,000 mm/s. Production line integration supports 0-300 m/min depending on material and code complexity.
Q: What barcode types are supported? A: Code128A/B/C, Code39, Code93, EAN13, PDF417, QR Code, Data Matrix, GS1-DM, Aztec Code, Hanxin Code, and DotCode.
Q: Is the marking permanent? A: Yes, UV laser creates permanent, high-contrast marks resistant to chemicals, abrasion, and environmental conditions.
Q: What is the marking area? A: Standard 70mm × 70mm. Custom sizes available upon request.
Q: How many lines can be marked? A: Unlimited lines within the marking area, supporting both single and double-line fonts plus dot matrix.
Q: What languages does the software support? A: English, Chinese (Simplified/Traditional), Spanish, German, French, Italian, Japanese, Korean, Russian, Portuguese, Turkish, Arabic, and Persian.
Q: What is the power requirement? A: 110V-220V universal voltage, 50-60Hz, maximum 750W consumption.
Q: Does it require cooling? A: Yes, the K9-5W includes a built-in water cooling system for stable long-term operation.
Q: Is installation support available? A: Yes, we provide remote technical support, on-site installation guidance, and operator training services.
