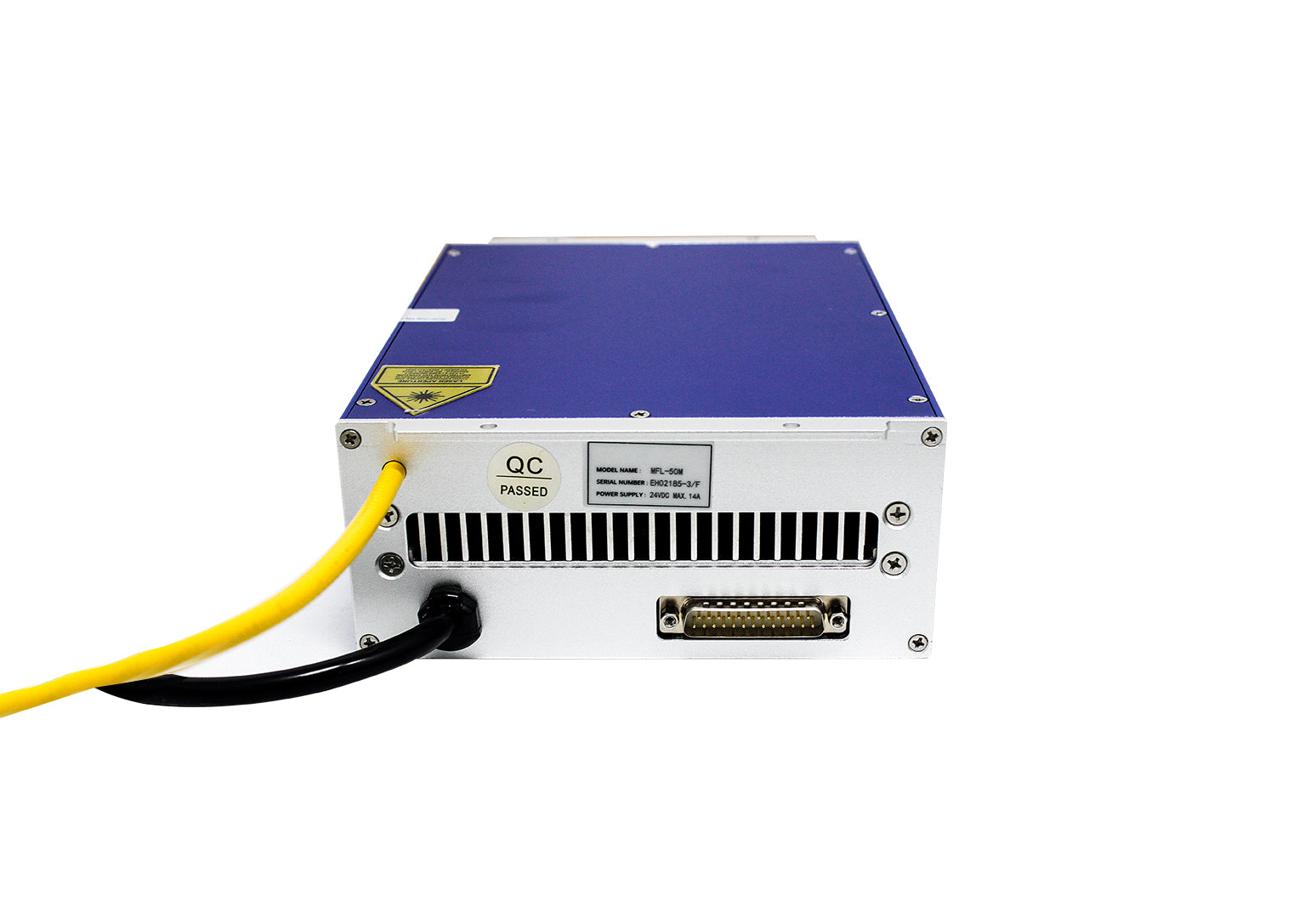

M series 20M/30/50M/60M Fiber Lase
$746.00
Available
M series 20M/30/50M/60MFiber Laser – Key Features
-
High speed
-
High efficiency
-
High reliability
Application
Designed to improve laser marking system efficiency. Provides high-power laser energy for industrial laser marking machines.
Technical Specifications
| Parameter | Description |
|---|---|
| Wavelength (pulsed) | 1060 – 1085 nm |
| Control interface | Standard industrial laser interface |
| Structure | Compact and independent |
| Usage | Standalone or integrated into user equipment |
| Power supply | 24VDC required |
PRODUCT PARAMETER
| model | MFL-20M | MFL-30M | MFL-50M | MFL-60M |
|---|---|---|---|---|
| output power | 20W | 30W | 50W | 60W |
| operation mode | pulse | pulse | pulse | pulse |
| state of polarization | random | random | random | random |
| beam quality | 1.5 | 1.5 | 1.8 | 1.8 |
| central wavelength | 1060-1070nm | 1060-1070nm | 1060-1070nm | 1060-1070nm |
| Spectral width (3 dB) | 5-10nm | 5-10nm | 5-10nm | 5-10nm |
| average optical power | 19-21w | 29-31w | 49-51w | 59-61w |
| power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
| Single pulse energy | 0.75mj | 1.1mj | 1.25mj | 1.5mj |
| optical pulse width | 80-120ns | 80-120ns | 90-130ns | 90-130ns |
| PRF | 27-60KHz | 27-60KHz | 40-80KHz | 40-80KHz |
| output power instability | 5% | 5% | 5% | 5% |
| Output spot diameter 1/e2 | 6-8mm | 6-8mm | 6-8mm | 6-8mm |
| Output beam ellipticity | 90% | 90% | 90% | 90% |
| length of the armored optical fiber cable | 2m | 2m | 3m | 3m |
| operating ambient temperature | 10-42℃ | 10-42℃ | 10-42℃ | 10-42℃ |
| storage temperature | -10~60℃ | -10~60℃ | -10~60℃ | -10~60℃ |
| cooling method | air cooling | air cooling | air cooling | air cooling |
| Working RH | 10~95% | 10~95% | 10~95% | 10~95% |
| Overall dimensions of the machine | 224x164x72mm | 224x164x72mm | 224x164x72mm | 224x164x72mm |
| Operating Voltage | 24VDC | 24VDC | 24VDC | 24VDC |
| Rated Power | 200W | 240W | 360W | 400W |
