MACFO802 Galvo Scanner
PRODUCT DESCRIPTION

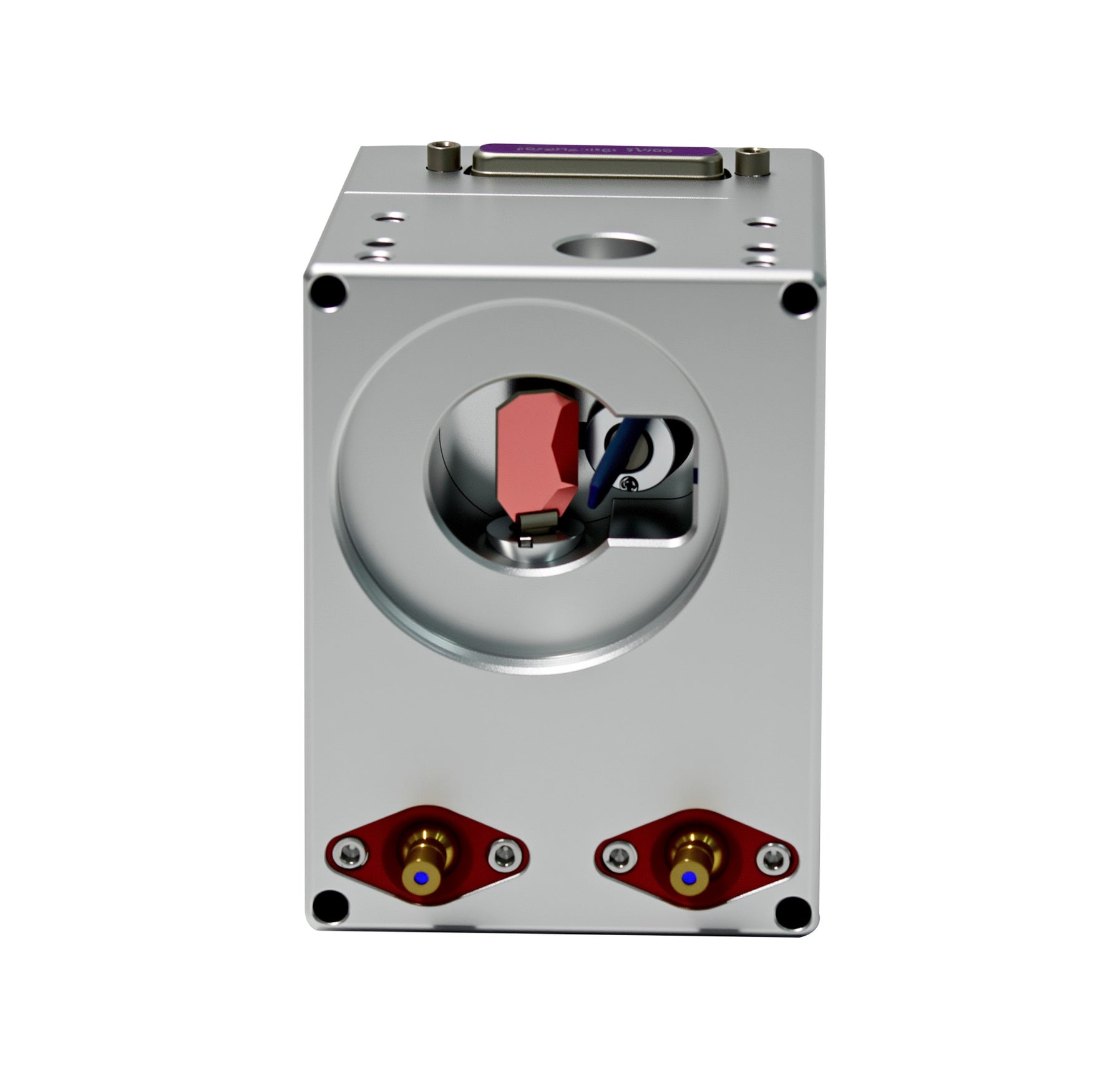

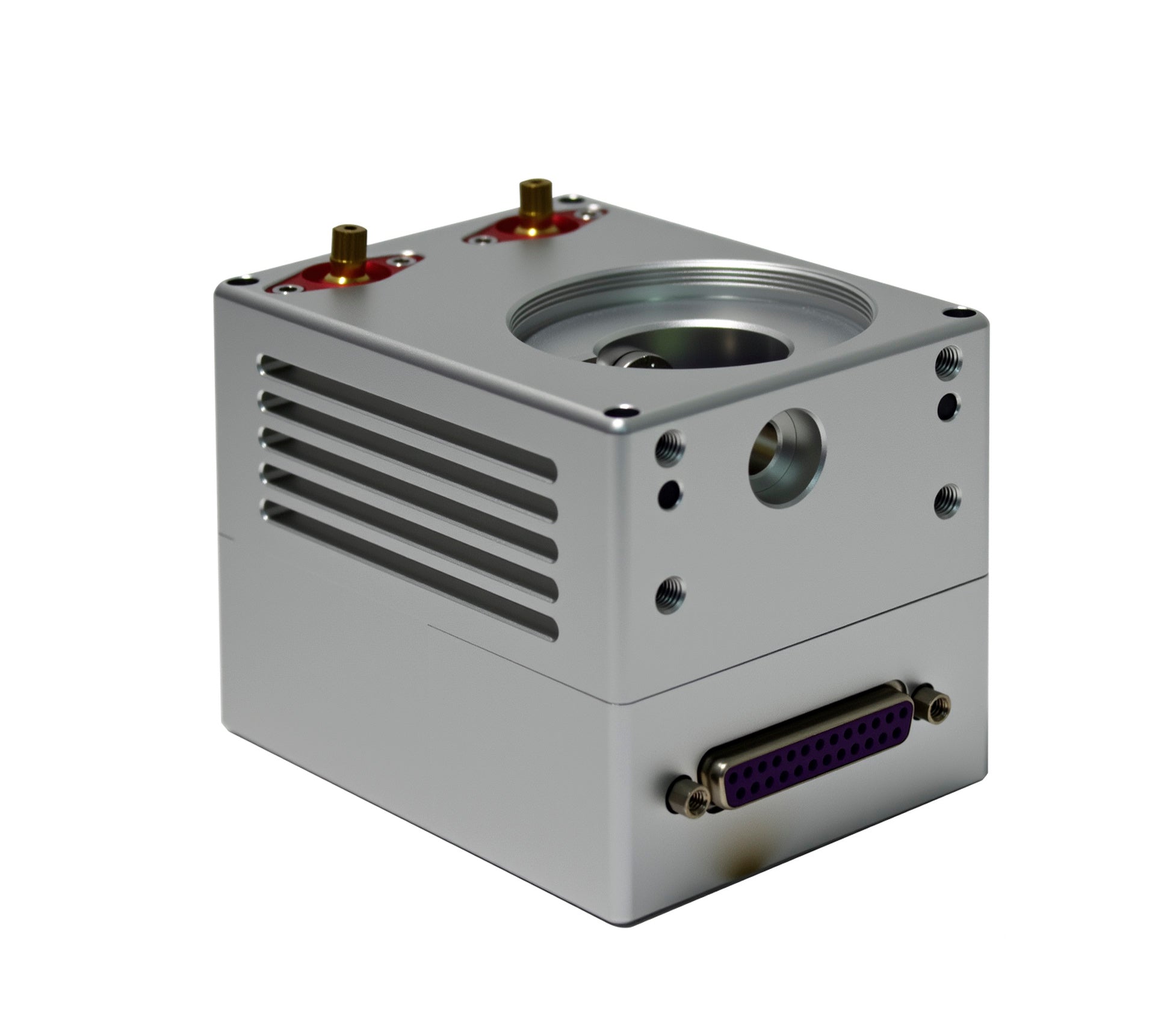

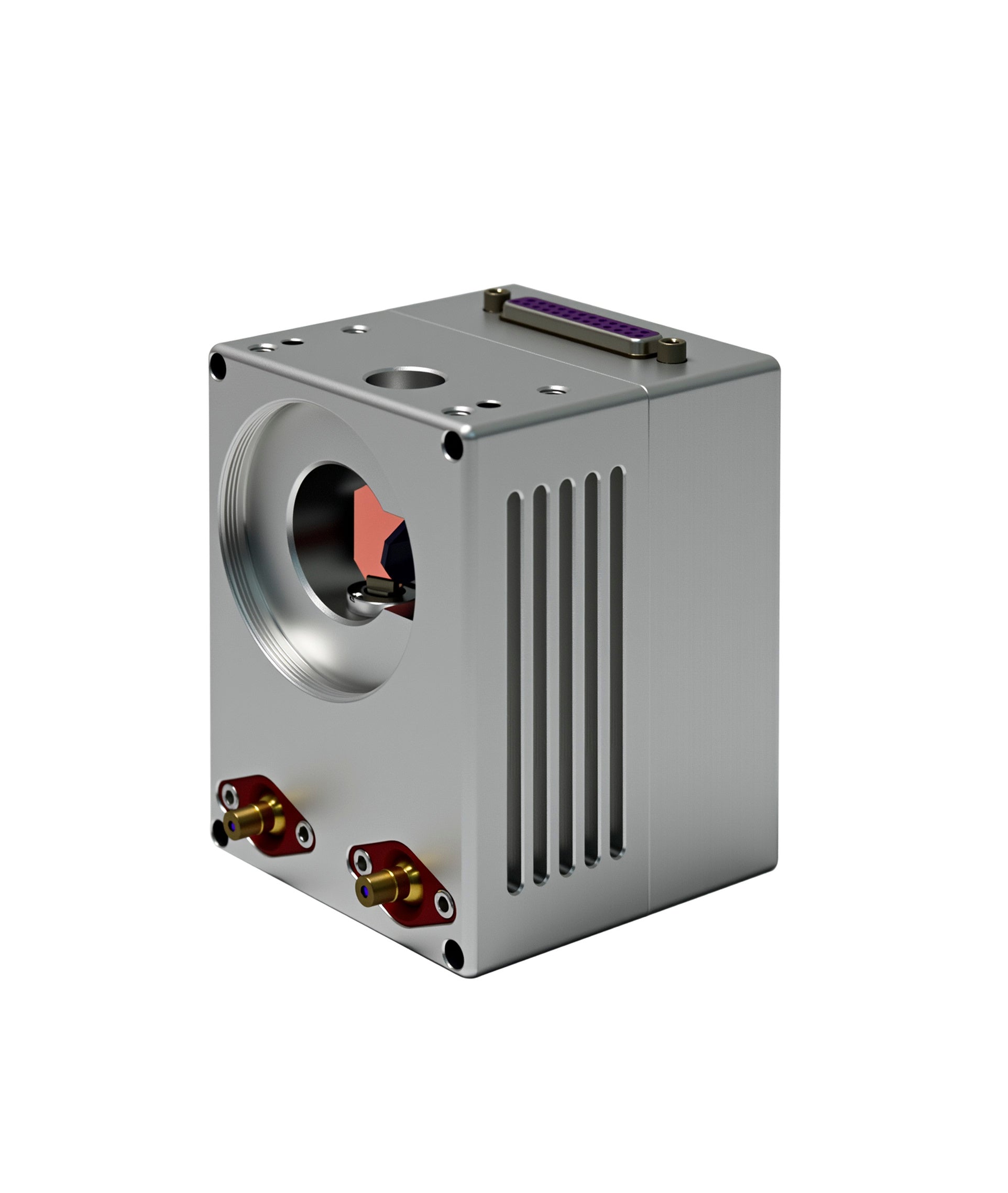

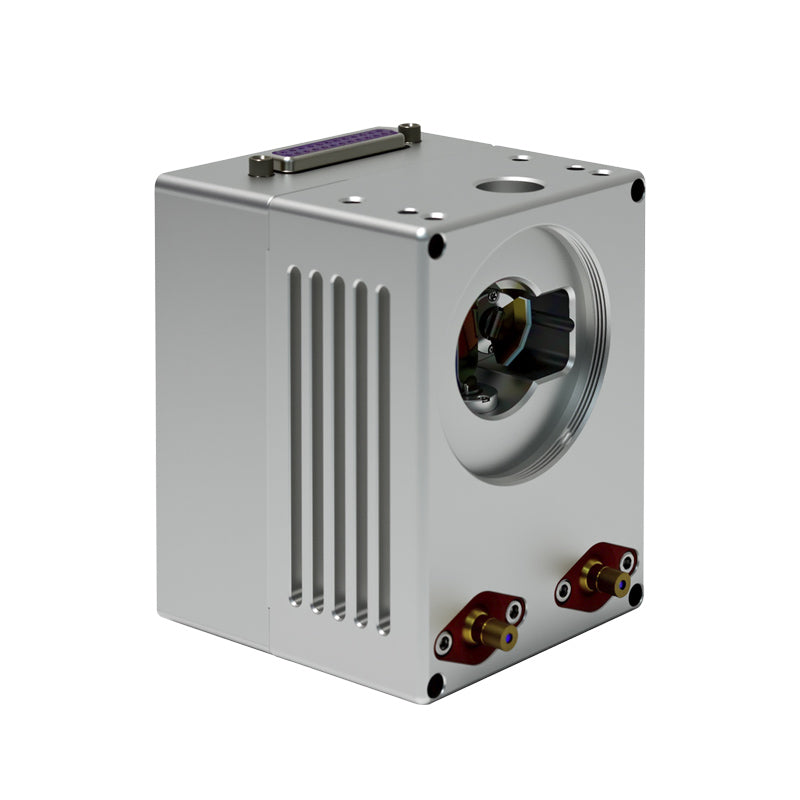

MACF0802 Dual‑Lamp Laser Scanning Galvanometer
Overview
Designed for high‑precision marking applications.
Standard incident spot diameter: < 6.5 mm.
Technology & Control
-
Digital servo driver with high‑precision position sensors
-
Fully closed‑loop control system
-
Proprietary driver, control algorithms, and motor (in‑house developed)
Key Features
-
Strong anti‑interference capability
-
Near‑zero thermal drift
-
High scanning speed
-
Compact size, low heat generation
-
Stable and reliable long‑term operation
Typical Applications
Food & beverage packaging · Pharmaceutical packaging · Architectural ceramics · Decorative buttons & crafts · Electronic components · Mobile phone, laptop & tablet enclosures · Wire stripping · Film cutting · PCB barcode marking · Equipment nameplates and labels
PRODUCT PARAMETER
| Parameter Item | Specification |
|---|---|
| Product Series | MACF0802 Dual Lamp Series |
| Scale speed | 3000mm/s (JZC software test) |
| Product Model & Compatible Types & Wavelength | MACF0802 optical fiber：1064 nm
|
| Entrance light spot | < 6.5mm |
| Beam displacement | 12.54mm |
| Follow-up error | 0.2ms |
| Repeatability | < 30 μrad |
| Zero drift | < 30 μrad/°C |
| Gain drift | < 110 ppm/K |
| Drifting for more than 8 hours | < 0.5 mrad |
| 1% of the total journey | 0.5 ms |
| 10% of the entire journey | 1.3 ms |
| Positioning speed | 9 m/s |
| Scanning angle | ±20 ° |
| Gain error | <10 mrad |
| Zero-point error | <10 μrad |
| Nonlinearity | <0.9 mrad |
| Power requirements | ±15 V / 2 A |
| Digital Interface | XY2-100 |
| Operating temperature | 25 ± 10 °C |
| Weight | 1 kg |
